UC Side Rail Kit

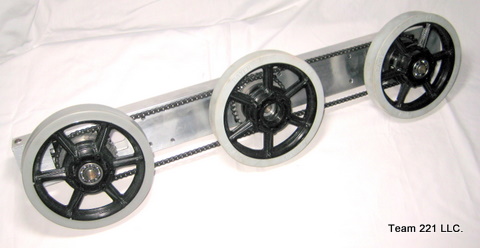

The UC Side Rail Package contains all the components necessary to start building a custom mobile robot chassis with integral chain tensioning.

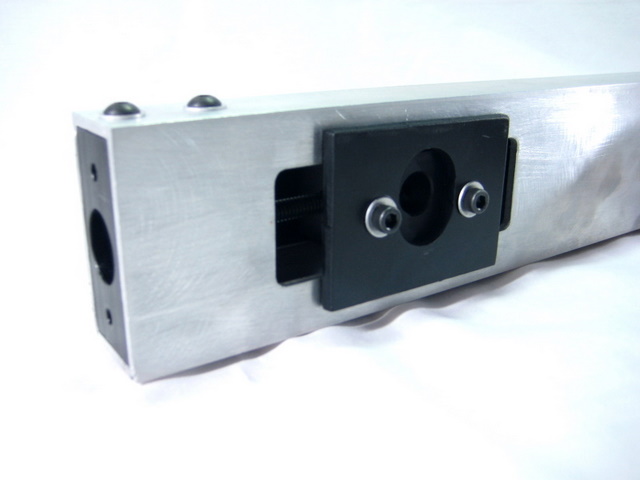

Universal Chassis can support 4", 6" or 8" wheels. The integrated chain tensioner system is designed to ensure proper drive chain tension and performance. Center wheel drop or "rocker" is built into the chassis to reduce wheel drag and aid in turning.
Note: These components require some light assembly procedures; i.e. filing and de-burring.
The kit includes:
2 - UC Side Rails, 35" or 25" Length
4 - UC Axle Blocks - .125
2 - UC Bearing Blocks
12 - UC Clamp Plates
4 - UC Tension End Plugs
4 - 1/2"id ball bearings
4 - Tensioning Bolts, 1/4"-20 SHCS x 1.75"l
1 - Misc. assembly hardware
This kit is supplied with .125" of rocker. The rocker can be adjusted by using optional axle blocks, sold separately.
Weight: 9.1 lbs.
Files
UC Side Rail Explode.pdf
Universal Chassis Assembly Instructions.pdf
